SAM-OIDC configuration change for NDI Migration

SAM-OIDC configuration change for NDI Migration

NDI migration (Windows version)

1. Changing Configuration

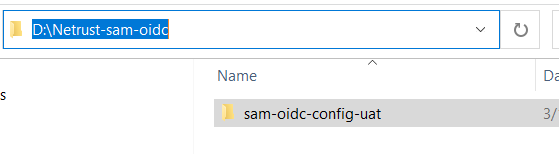

-Locate to the sam-oidc config folder
(Note: the folder will be located within C drive if there is only C drive within the server. Else it will be located within other 'Drive")



(Note: the sam oidc config folder can be named as either sam-oidc-config-uat or sam-oidc-config-prod as it depends on which server is being accessed to)

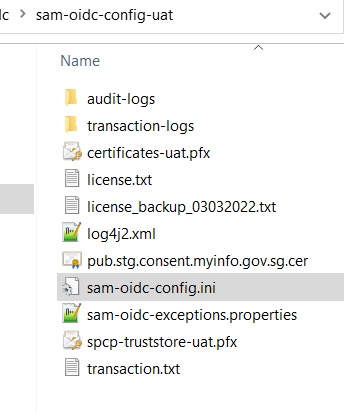

-Within the sam-oidc folder, locate the sam-oidc-config.ini file


-Right click and select 'Edit with Notepad++'

(Note: In the event where the option of Edit with Notepad++ is unavailable, do proceed to edit with notepad)

-Change the SPLoginAuthenticationMethod and CPLoginAuthenticationMethod from SPCP_OIDC_SECRET to NDI_OIDC_JWKS_AUTH

change to

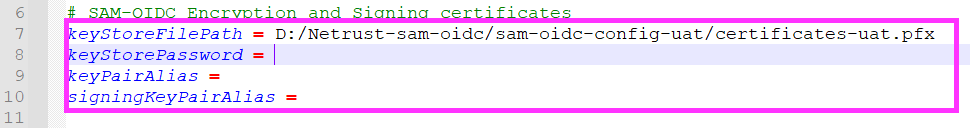

-Ensure that the following configuration are accurate

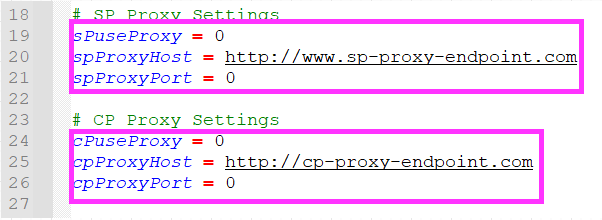

(Note: The existing configurations for keyStoreFilePath, keyStorePassword, keyPairAlias, signingKeyPairAlias, SP Proxy settings and CP Proxy settings can be used for a new setup)

-Ensure that the pathing for the following are correct

(Note: For sam-oidc-exceptions.properties, license.txt, transaction.txt and log4j2.xml, these files are at the same location as the sam-oidc-config.ini file)

-Save

(Note: In the event where there is an update for any files, for example SPCP truststore pfx, do take note to backup the existing one and place in the updated file within the sam-oidc-config folder)

2. Restart Tomcat Service

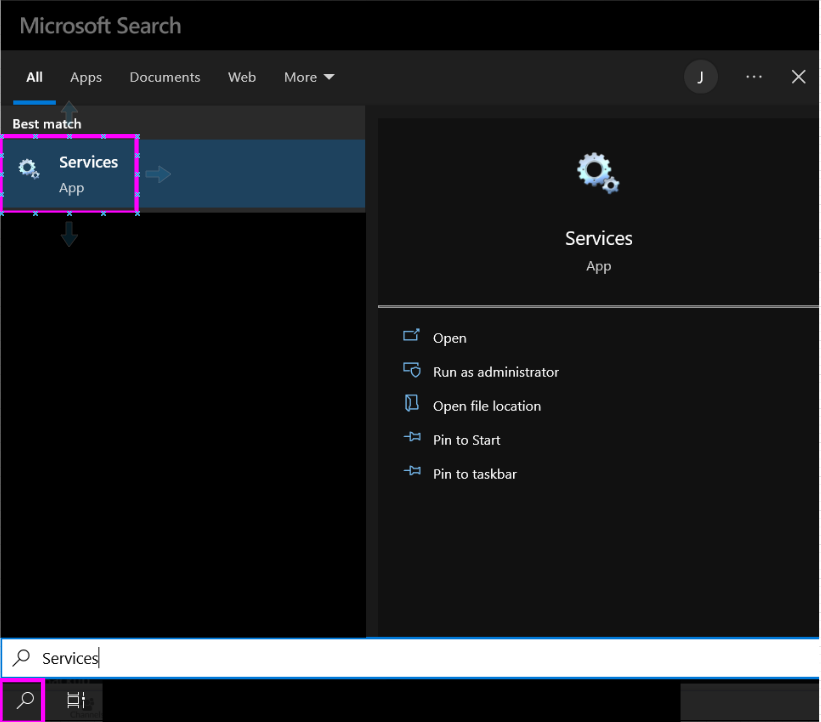

-Select the Search icon on the taskbar, key in Services and select the Services App


-Locate the Tomcat Service

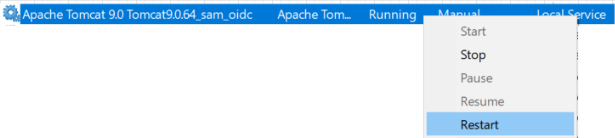

-Right click on the Tomcat Service and select restart





NDI migration (linux version)

1. Changing Configuration

-Locate to the sam-oidc config folder
(example command)
cd /opt/Netrust/sam-oidc-config-uat
(Note: press the "tab" button twice to view what are the files available
for example, after typing /opt/, press "tab" twice and system will show the files/folders located within /opt, and you will be able to select the folder you need)



key in command "ll" (small L) to list out the files within sam-oidc-config folder to ensure that sam-oidc-config.ini is available in the folder




-edit the sam-oidc-config.ini file
(example command)
sudo vi sam-oidc-config.ini

press the "i" button to enable editing

change the SPLoginAuthenticationMethod and CPLoginAuthenticationMethod from SPCP_OIDC_SECRET_AUTH TO NDI_OIDC_JWKS_AUTH


change to


Ensure that the pathing and details for spcp truststore, sam-oidc encryption and signing certificate, and proxy settings are correct
(example)



press "Esc" button to stop editing function and press ":qw!" to save

(Note: In the event where there is an update for any files, for example SPCP truststore pfx, do take note to backup the existing one and place in the updated file within the sam-oidc-config folder)

2) Restart Tomcat service

(example command)
sudo systemctl restart tomcat

(Note: tomcat is the service name, it will be different depending on what the user set. To verify, proceed with the following command:
cd /etc/systemd/system
ll (small L)
This will list out the available service. look for the tomcat service and carry out the example command to restart service)

Testing

Open up Postman application and run "sam-oidc/.well-known/keys" script

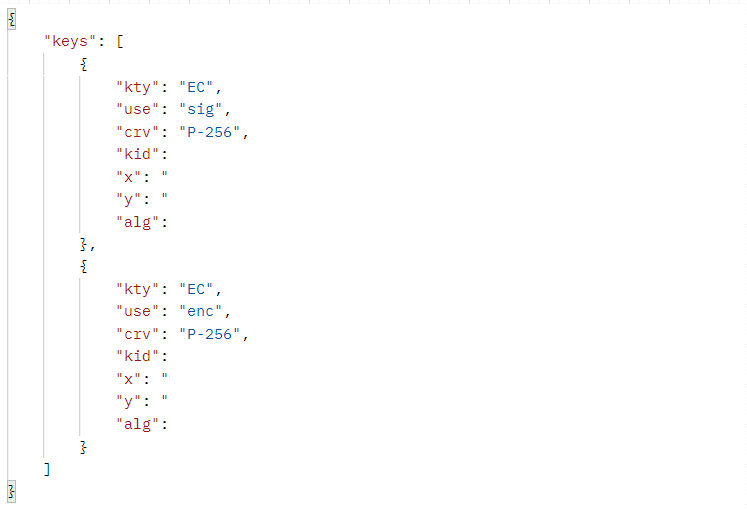

The result should be:


(Note: Ensure that the IP address and the port number are correct)
(Note: Values for "kid", "x", "y" and "alg" should not be blank)

In the event that there is no Postman application or script available, do proceed to run the API on a browser

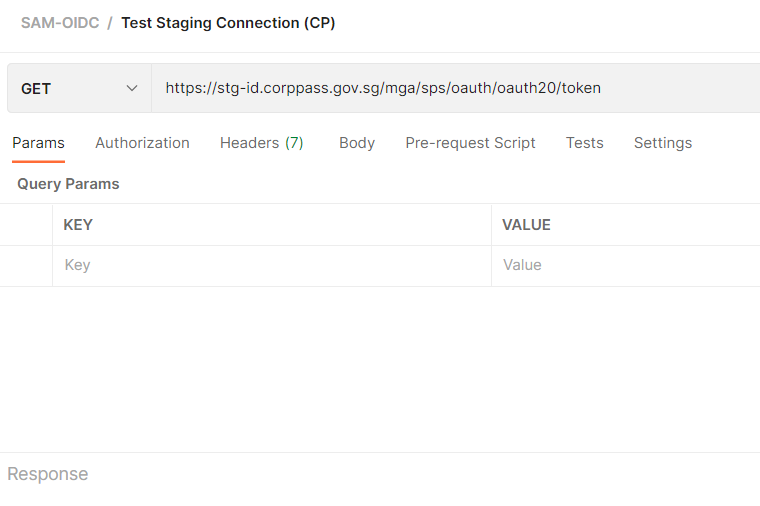

Run "Test staging Connection (CP)" and/or "Test Prod Connection (CP)" script within Postman

(Note: the result should be "Test Connection OK 200")

In the event that there is no Postman application or script, do run the follow curl command:
(Note: the result should be error0400: Failed to send authorization code and associated information to SPCP OOB Endpoint)

In the event that there is no Postman application or script, do run the follow curl command:
curl --header "Content-Type: application/json" --request POST --data "{\"code\" : \"placeholder\", \"grant_type\" : \"authorization_code\", \"client_id\" : \"<Actual Client Id>\", \"client_secret\" : \"placeholder\", \"redirect_uri\" : \"placeholder\"}" http://<SAM OIDC Server URL>:<SAM OIDC PORT>/sam-oidc/corppass/resolveTokens
